How to Install FIAMO Countertop Pizza Oven

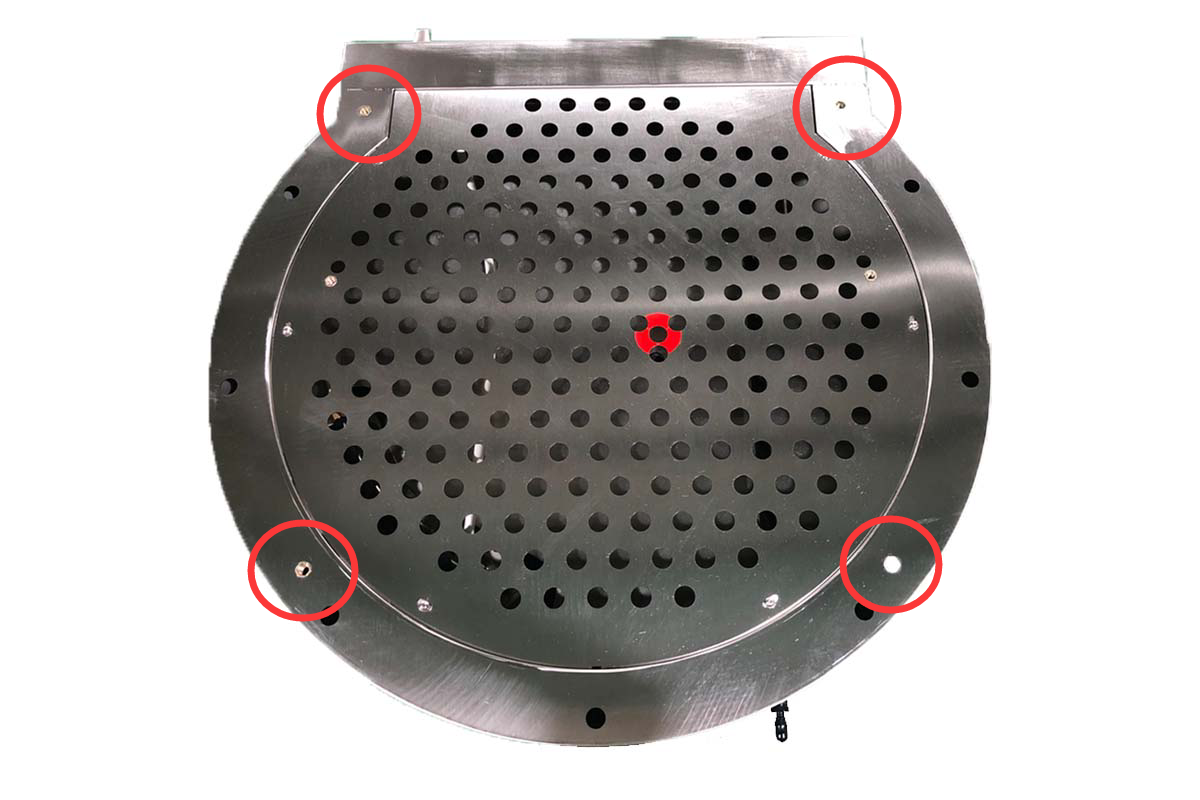

Installation
![install install](https://www.ovendesigns.com/wp-content/uploads/2024/07/install.png)
Step 01:
Place the oven dome on a flat table, exposing the 2 screw holes for the mounting leg. Use caution when turning and lifting the oven – may hurt your hands or pinch your fingers . If necessary use gloves for protection.
![step 01 step 01](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-01.jpg)
![step 01 (1) step 01 (1)](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-01-1.jpg)
Step 02:

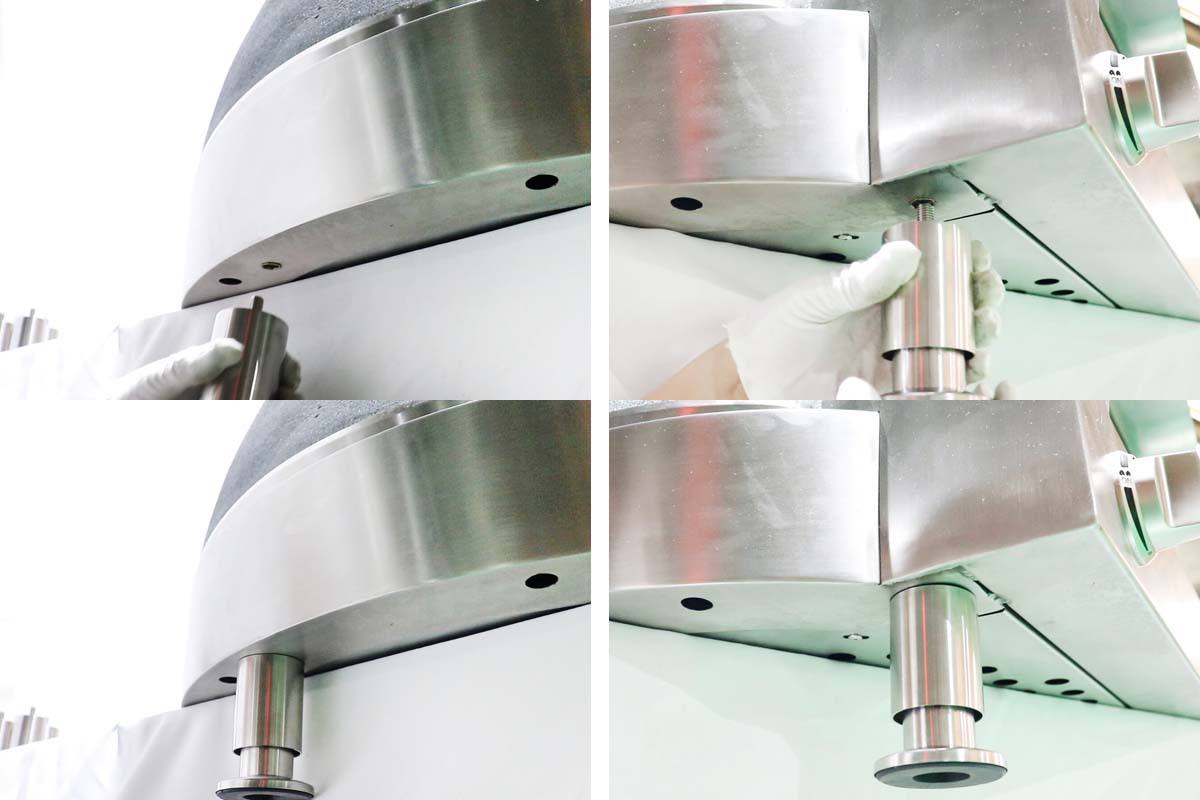

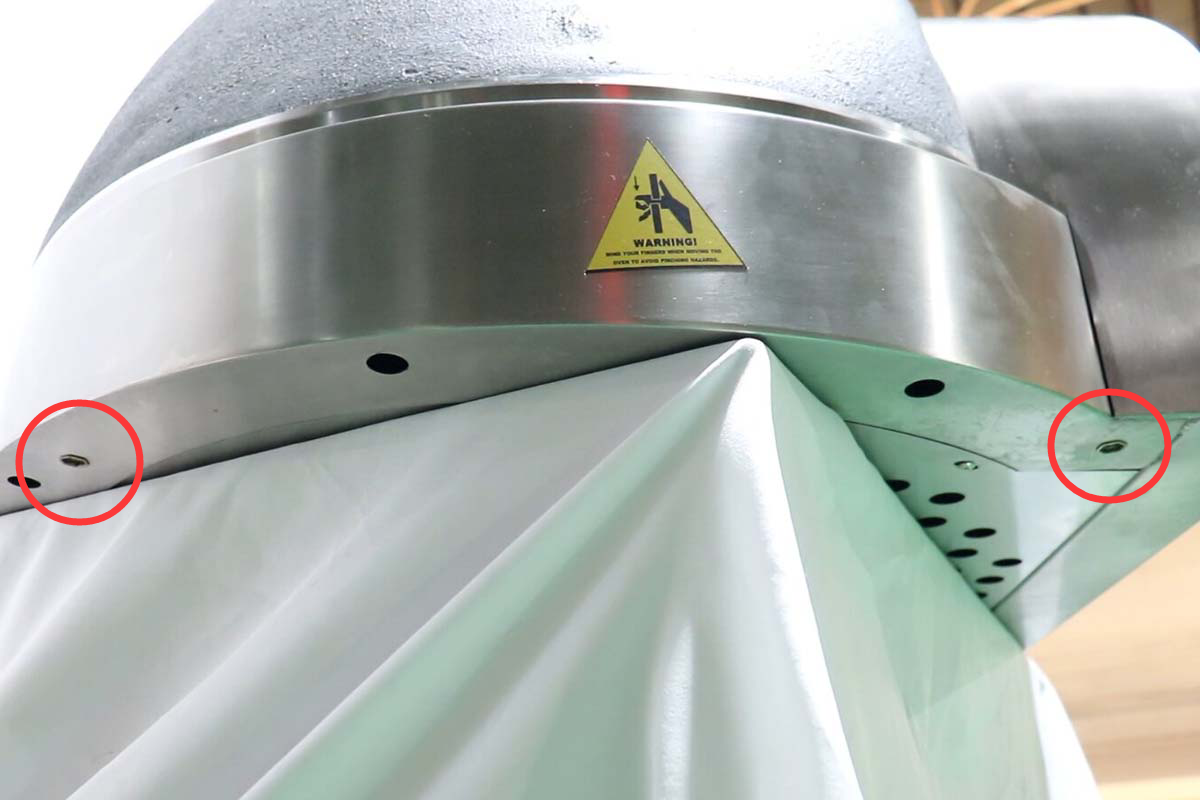

Align the mounting leg with the 2 screw holes and turn them clockwise into the oven dome body.
![step 02 step 02](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-02.png)
![step 02(1)](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-021.jpg)
Step 03:

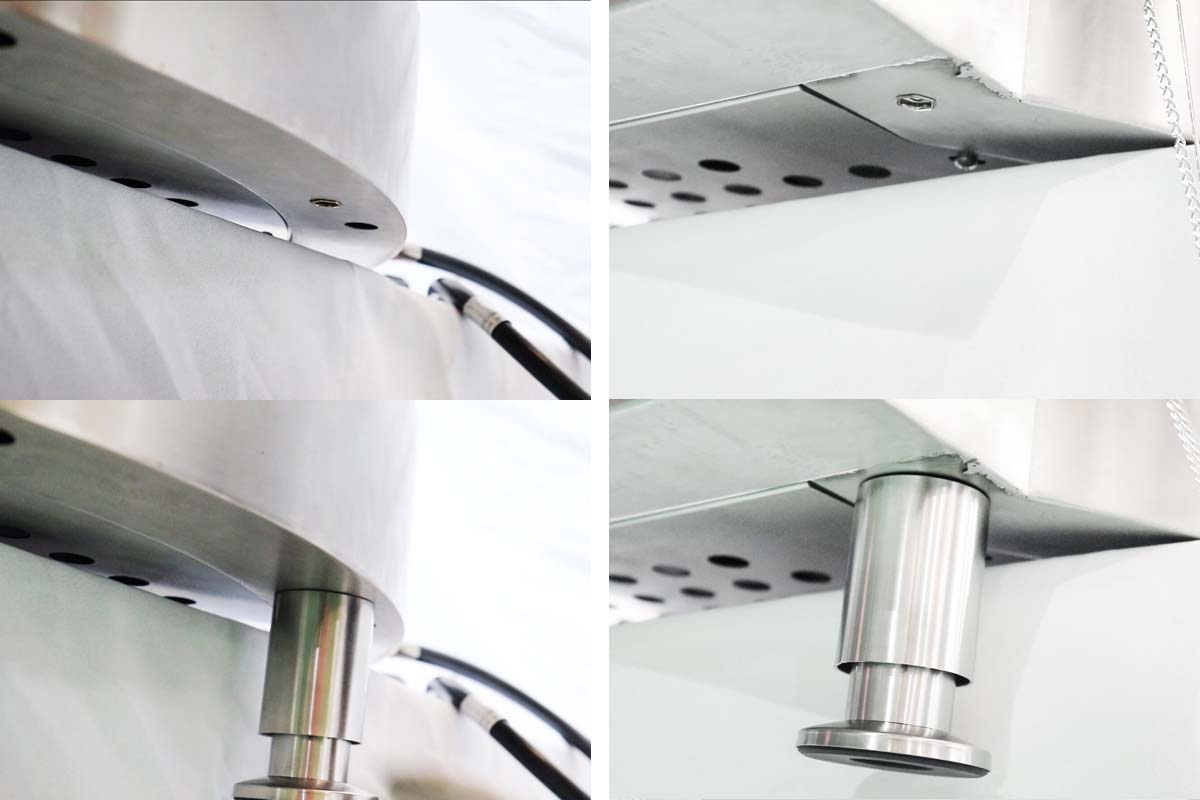

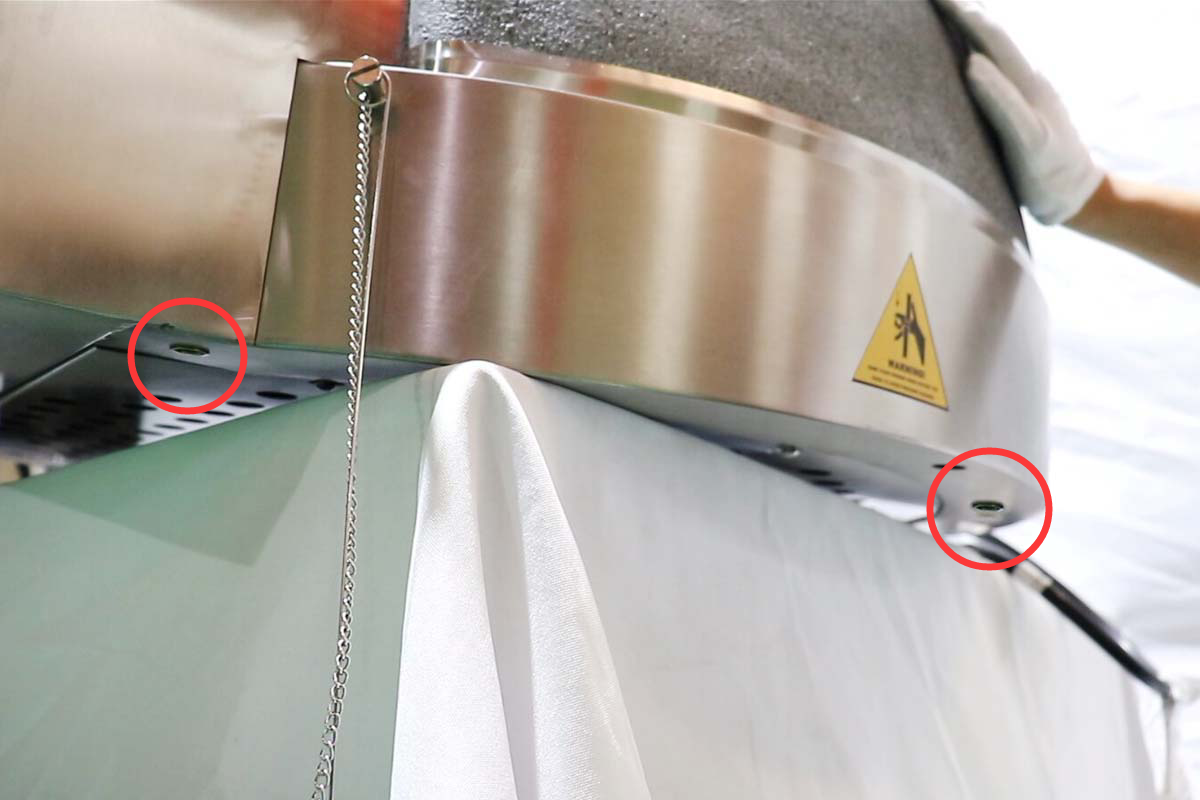

Put the oven dome with 2 short mounting leg installed to the middle of the table, lift the oven dome body, and install the remaining mounting legs.
![step 03 step 03](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-03.png)
![step 03(1) step 03(1)](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-031.jpg)
Step 04:

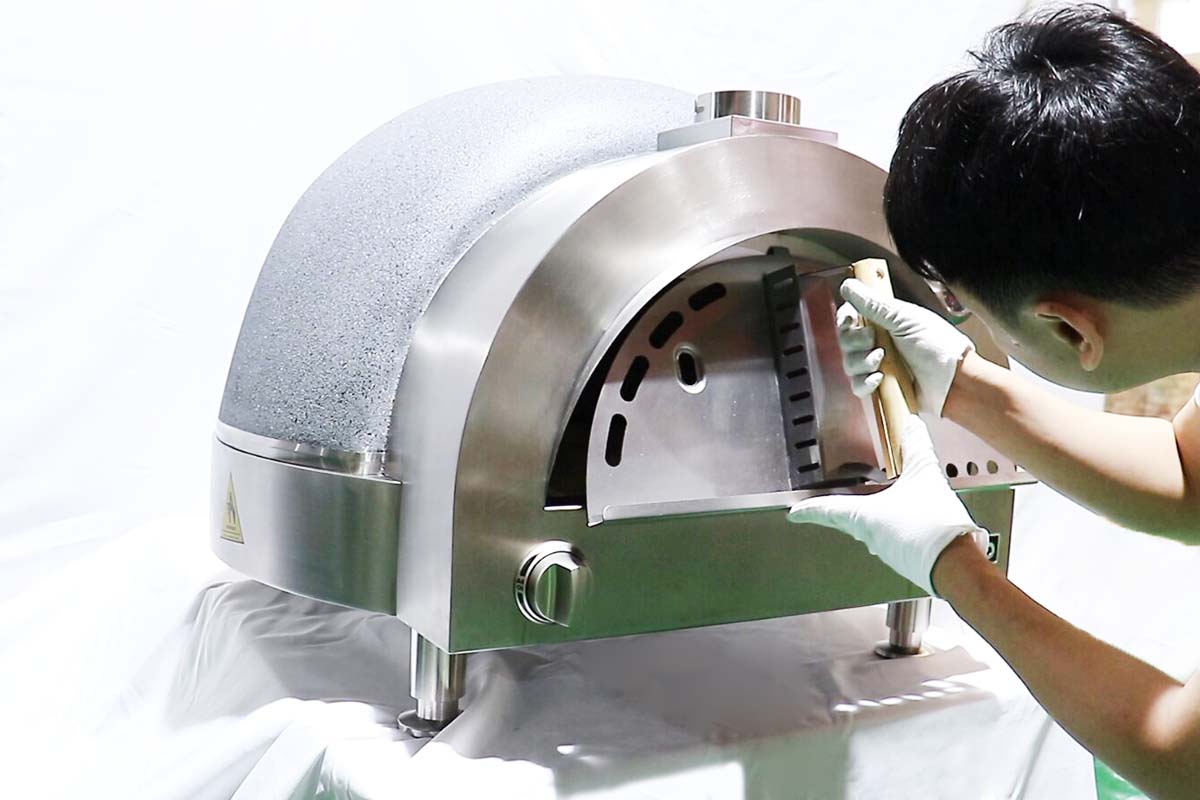

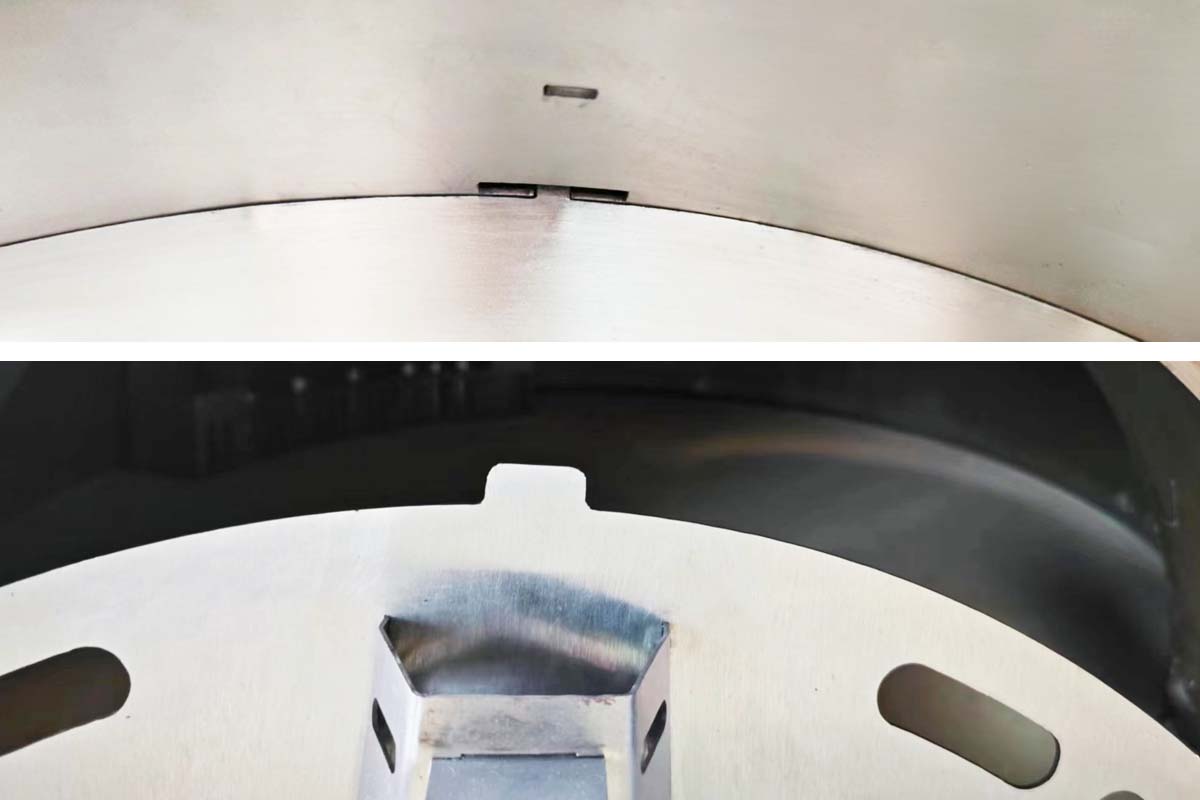

Install the oven door, make sure the tip of oven door enter into the slot position.
![step 04 step 04](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-04.jpg)
![step 04(1) step 04(1)](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-041.jpg)
Step 05:

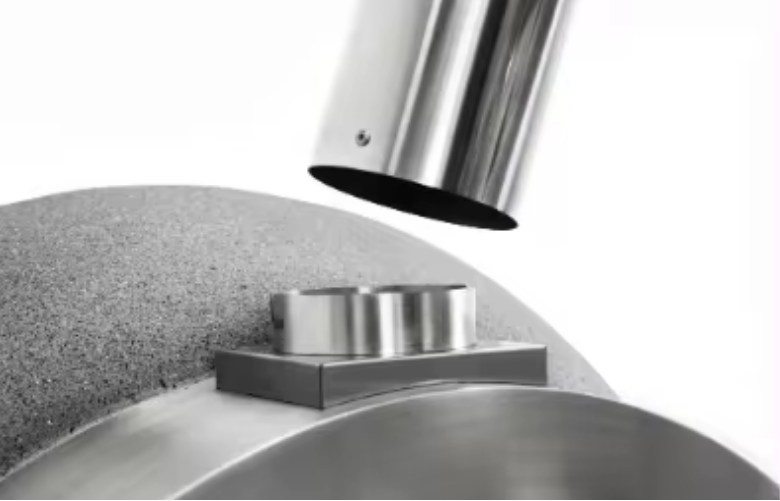

Install the chimney on the oven dome body, and twist the chimney counterclockwise to locate it to the base. And the oven is ready for use.
![step 05 (1) step 05 (1)](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-05-1.png)
![step 05 step 05](https://www.ovendesigns.com/wp-content/uploads/2024/07/step-05-e1721635399253.jpg)

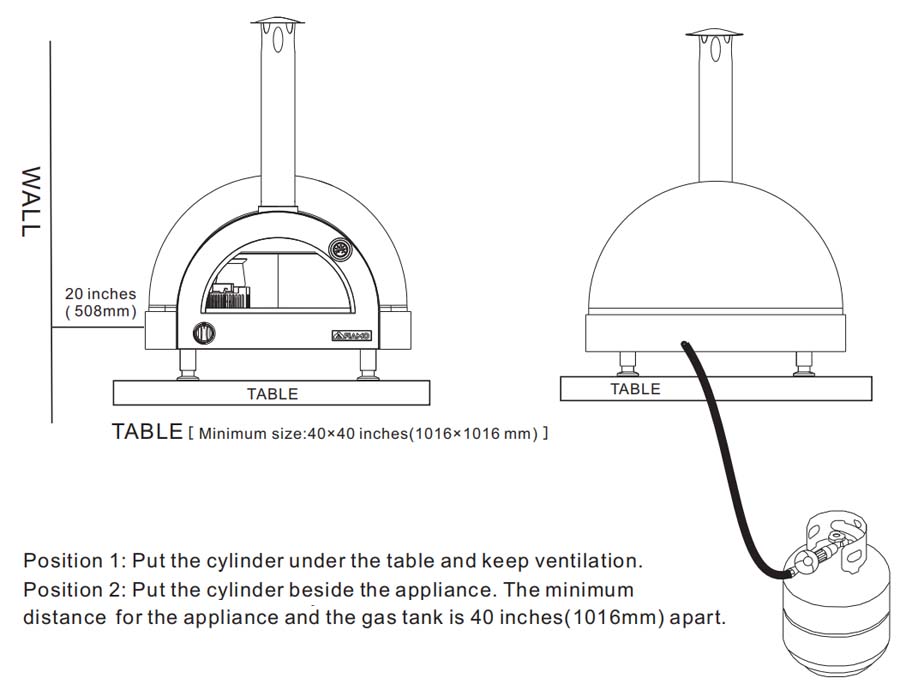

Recommended Position
![position position](https://www.ovendesigns.com/wp-content/uploads/2024/07/position-1.jpg)
WARNING
• Please always keep the gas bottle in upright position.
• If the appliance is not in use, the gas must be turned off at the supply cylinder.
• The cylinder used must include a collar to protect the cylinder valve..
• The minimum distance from the appliance to the wall is 20 inches(508mm).
• The minimum size of the table is 40×40 inches(1016×1016mm).
STATEMENT
•Do not store a spare LP gas cylinder under or near this appliance;
•Never fill the cylinder beyond 80 percent full; and
•If the instructions are not followed exactly, a fire causing death or serious injury may occur.
