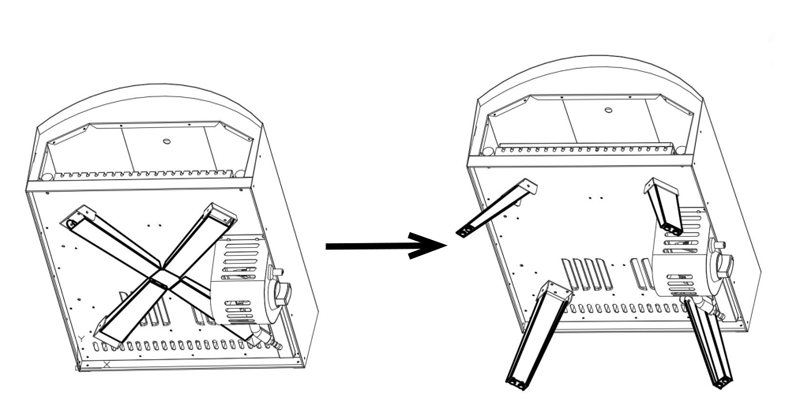

Step 01:

Open the scaffold.

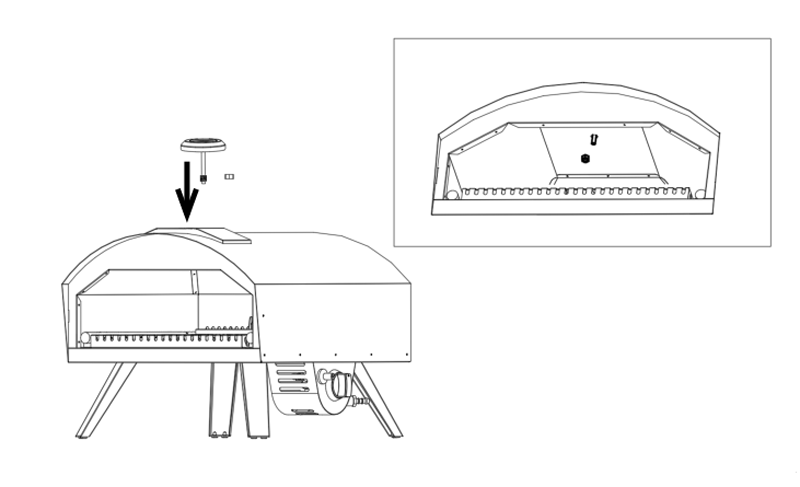

Step 02:

Rotate and unscrew the thermometer nut, place the thermometer on the oven, and rotate the nut to fix the thermometer in the oven.

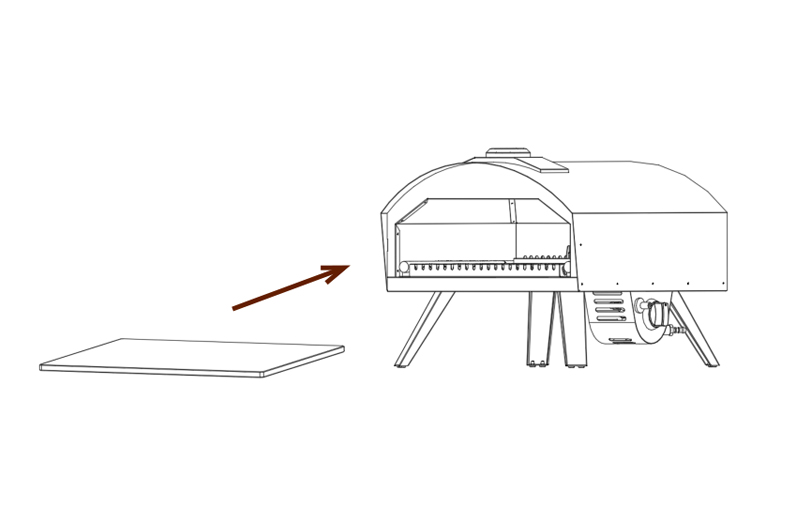

Step 03:

Place the pizza stone in the oven and be careful not to cover the pizza stone over the side fire exhaust pipes.

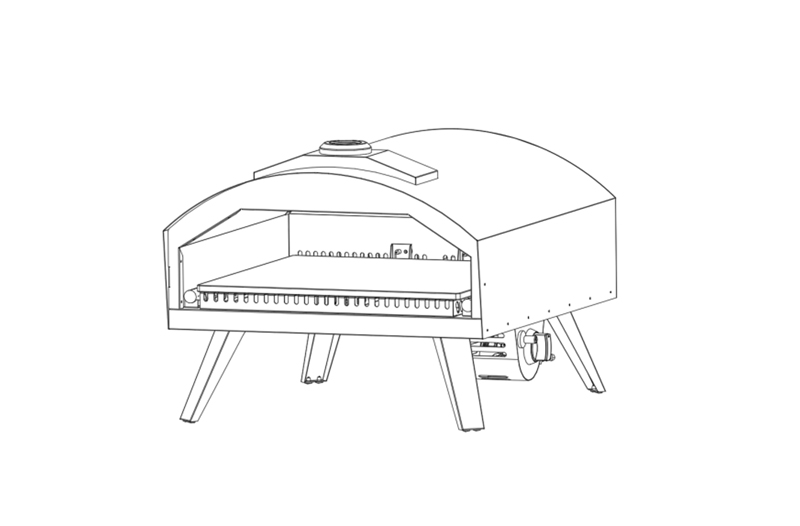

Step 04:

The oven is ready for use.

WARNING

Please always keep the gas bottle in upright position.
• If the appliance is not in use, the gas must be turned off at the supply cylinder.
• The cylinder used must include a collar to protect the cylinder valve.

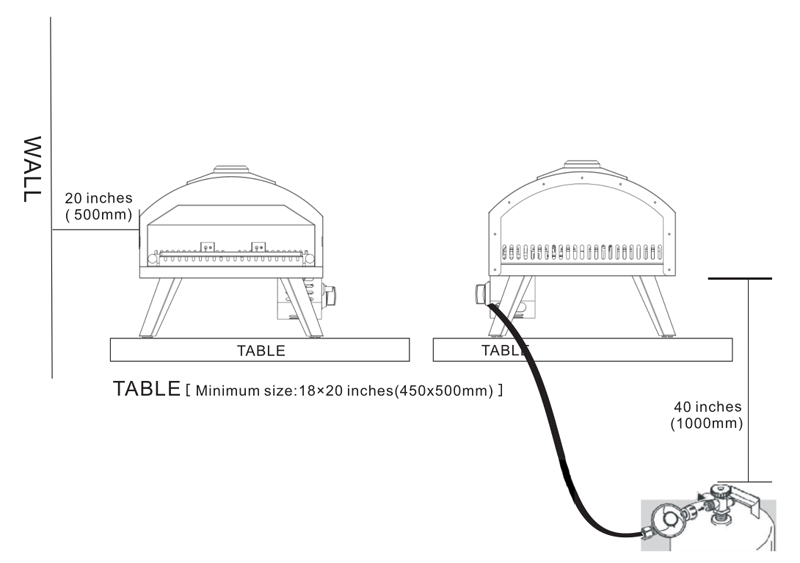

• The minimum distance for the appliance and the gas tank is 40 inches (1000mm) apart.
• The minimum distance from the appliance to the wall is 20 inches(500mm).
• The minimum size of the table is 18×20 inches(450×500mm).

Check all gas connections for gas leaks before starting your oven.
Do not lean over the oven when lighting. Keep your face and body at least 50 cm/20-in away from the oven
door. The burner control knob must be in the OFF position before turning on the LPG tank valve.

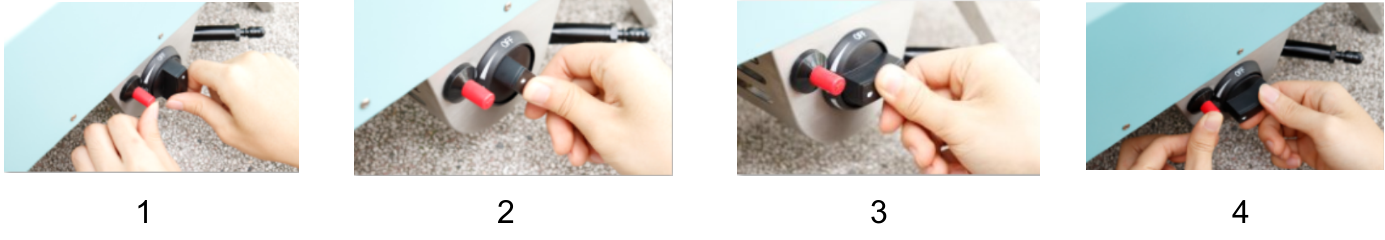

1. Make sure burner knobs are turned to “OFF”.
2. For gas oven using a propane tank, slowly open the tank valve.
3. Pushed in and rotated the control knob to ON. Then press the red igniter, the burner lit and produced a good strong flame. The control knob was turned up and down between the low and high settings to control the fire.

Make delicious food with this oven!
